Adjustable & space-efficient, this VESA 75/100 compatible desk, table, and countertop mounting solution is designed for tablets, POS systems, & kiosk environments. Its compact footprint maximizes usable surface area while allowing tilt adjustment and flexible positioning for optimal viewing and user interaction. Integrated cable routing through the mount ensures clean wire management, making it ideal for retail, commercial, and professional installations
[VESA Mount only. Tablet enclosure NOT included]
| SKU | VB_VESA_MNT_ATS_BLK |
|---|---|
| UPC | 840014211548 |
| HS Code | 8302494000 |
| Product | |

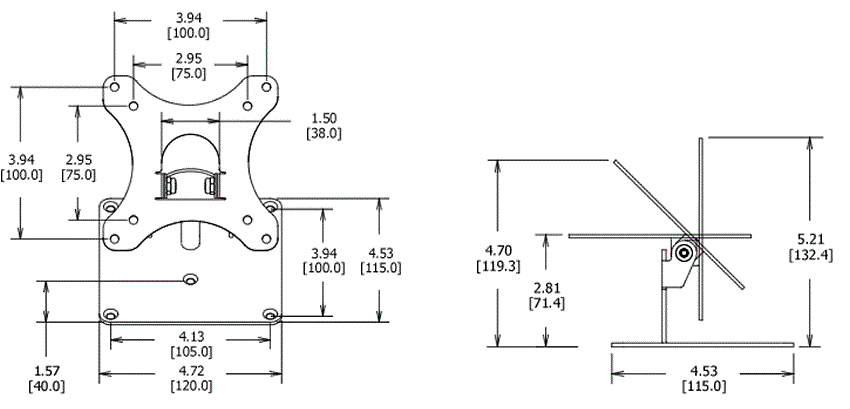

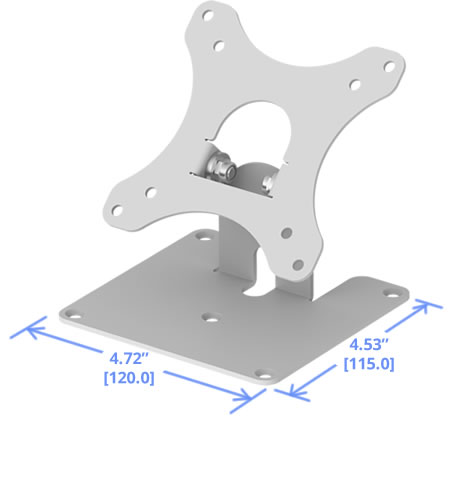

| Length | 4.53" [115.1 mm] |
| Width | 4.72" [119.9 mm] |
| Height | 5.21" [132.3 mm] |
| Weight | 1.00 lbs [0.454 kgs] |
Adjustable Flip Surface VESA Mount
(4) M4 x 8mm Phillips Pan Head Screws

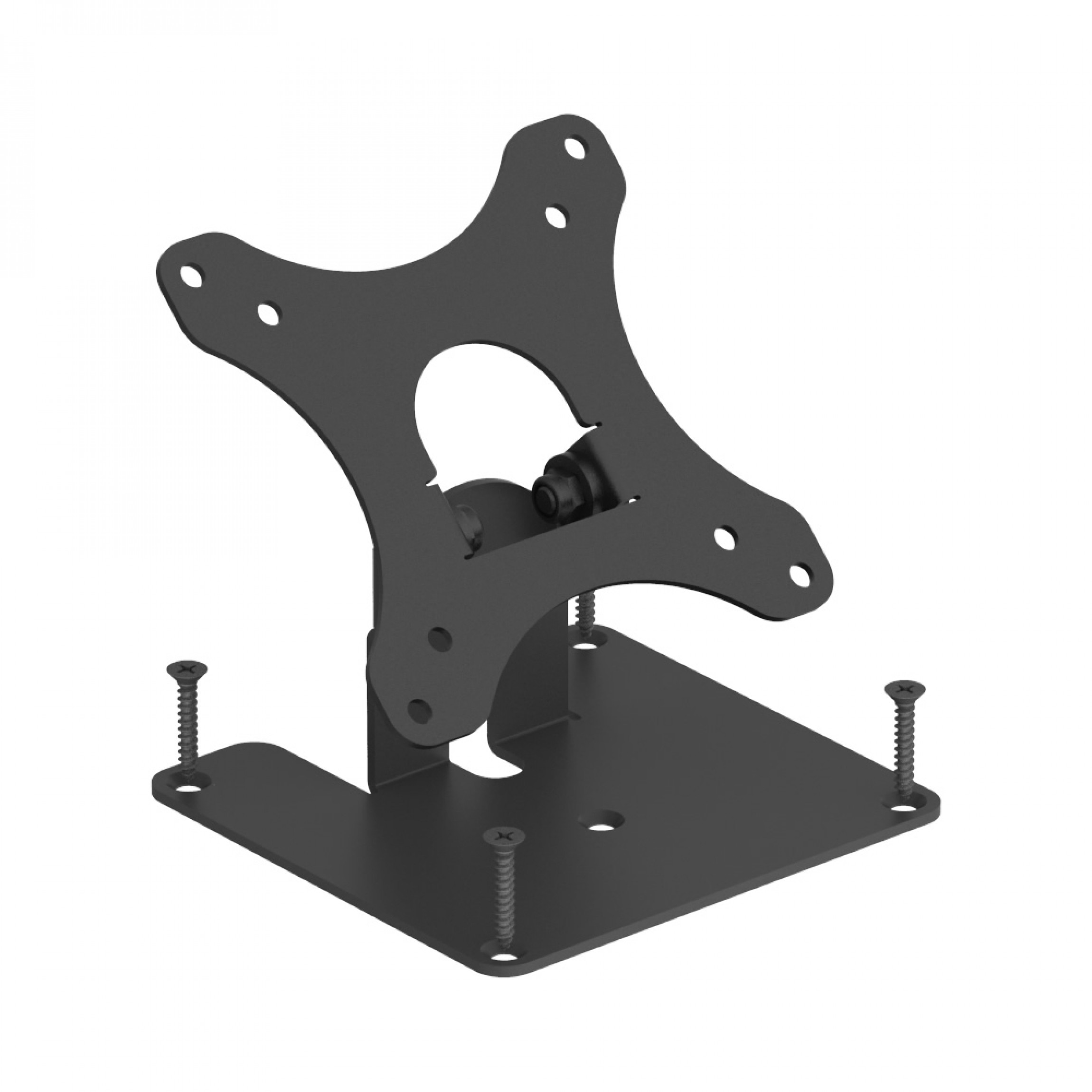

(4) M5x30 Phillips Countersink Head Wood Screws (Bolts)
Installation instructions
Rated 4.8/5 by 100+ our happy customers
Choose your perfect fit from our extensive
range
of enclosures and mounts.
Easy setup with our clear instructions.
Need help? Our support team's ready.
Transform your space with secure, powered,
and professionally mounted tablets.
Need a table top mount that allows your device to flip forward or backward in seconds? Our Adjustable Tilting Surface (ATS) mount is the answer! A simple 'lifting' motion allows the screen to be quickly viewable by a person facing the opposite direction.

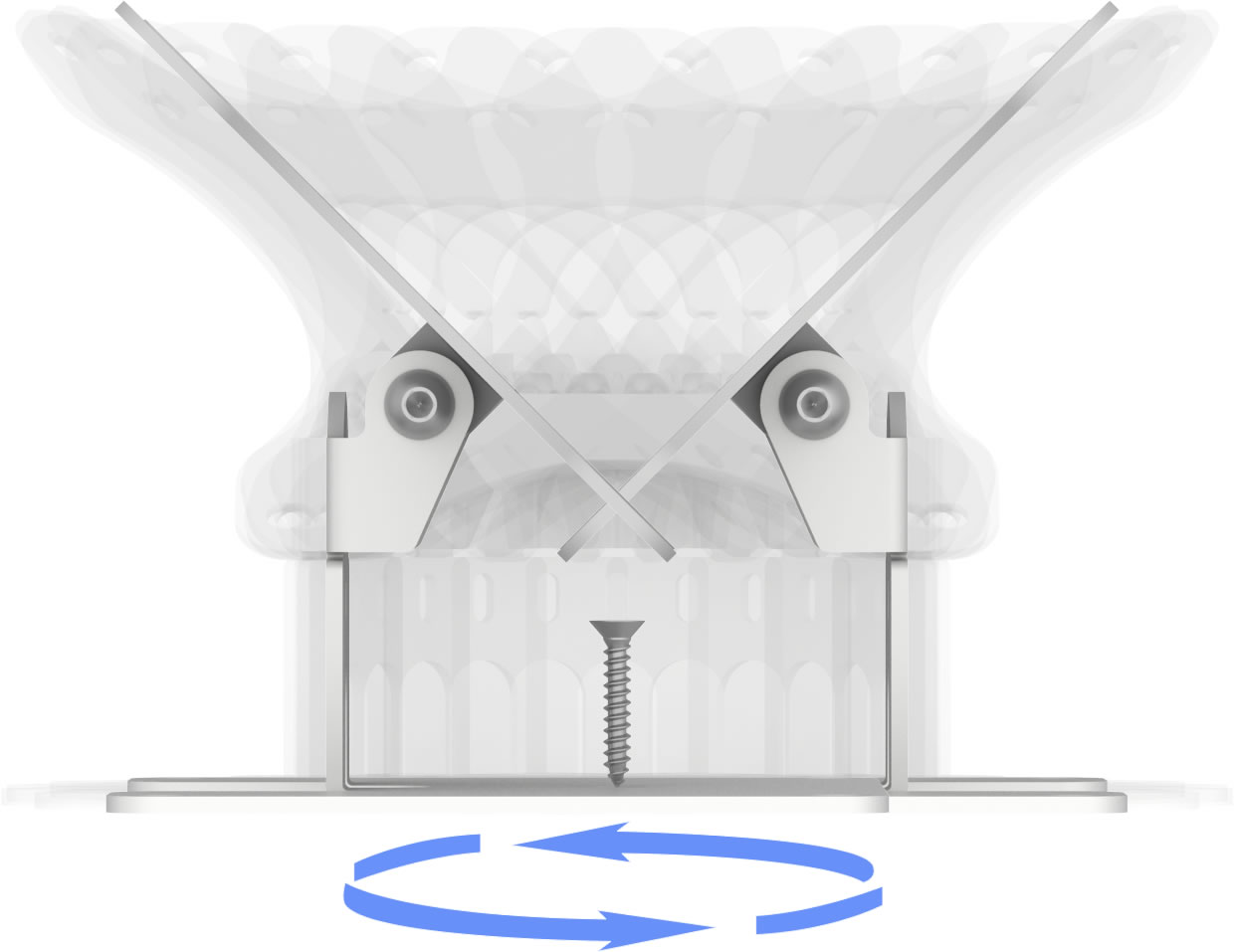

Instead of flipping the device to show the screen, secure the ATS mount with a single screw in its middle, and then swivel the display for easily viewing. Flip or swivel - it's your choice!
Prefer to have your device quickly mobile and portable? There's no need to secure nor bolt down the ATS mount. When combined with VidaMount VESA ready enclosures, you can easily display any iPad or tablet, on any desk or countertop surface, with secure mounting using the included screws, an optional Kensington lock, or leave it free standing / un-secured!
Its ultra-small footprint allows you to maximize free desktop space - allowing more room to place last-minute, impulse buy items nearby. Make the most of your retail space and drive more sales by using the Adjustable Tilt Surface mount!
VESA 75 & 100 (75mm & 100mm) compatible mounting points means it can be used with a wide range of VESA compatible tablet enclosures, including all of our VidaMount VESA Tablet Enclosures.

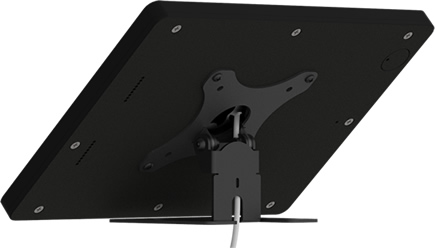

Charging cables can be passed through the mounting plate's center opening - which is large enough to allow any data/charging cable to pass with ease - then downward into the ATS mount's wire guide.
