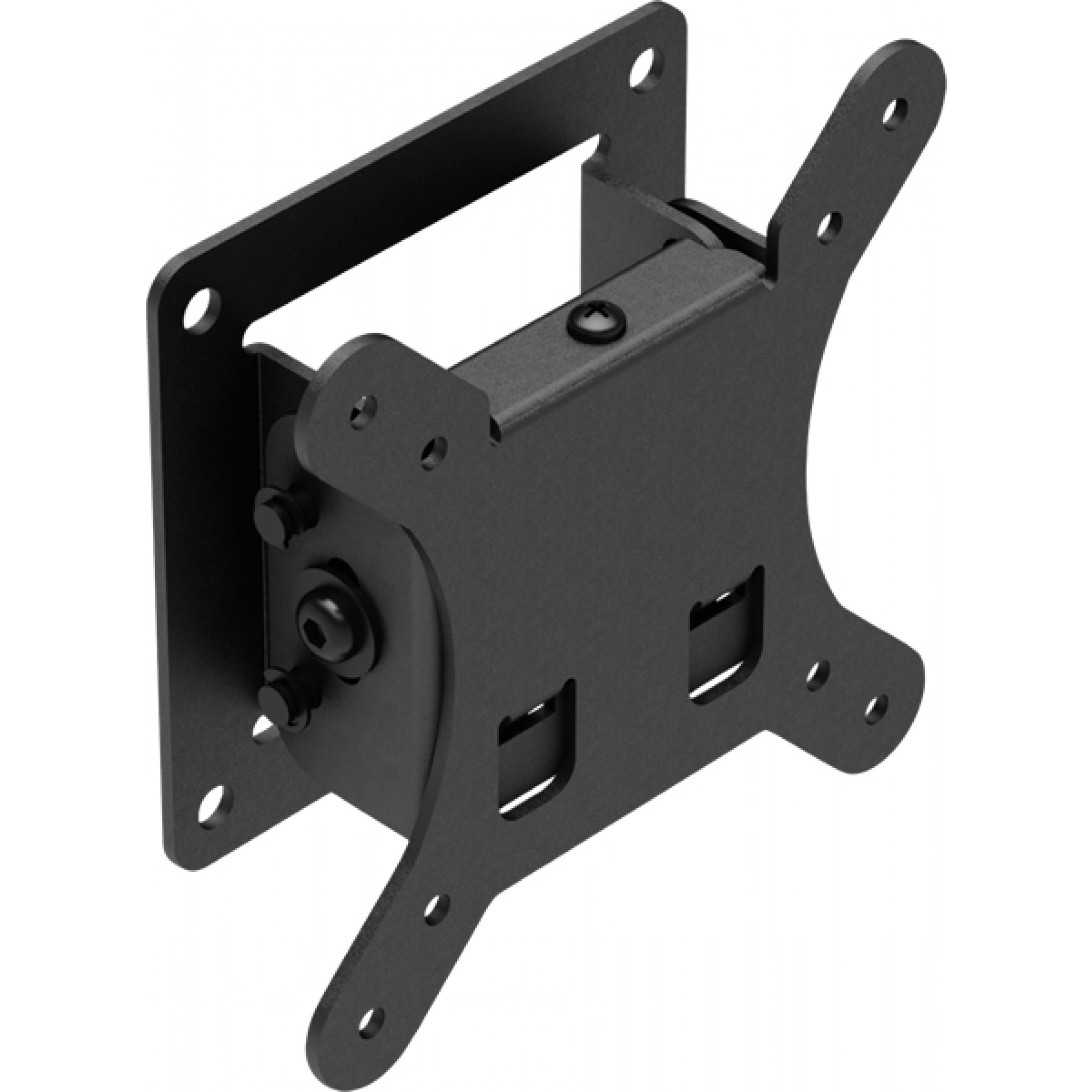

Tilting VESA Wall Mount - ISO
Tilting VESA Wall Mount - ISO
Tilting VESA Wall Mount - Front
Tilting VESA Wall Mount - Back
Tilting VESA Wall Mount - Side -10deg
Tilting VESA Wall Mount - Side
Tilting VESA Wall Mount - Side +10deg
Tilting VESA Wall Mount - Exploded
Tilting VESA Wall Mount - Hardware

Tilting VESA Wall Mount

$22.59

Tilting VESA 100/75 compatible wall mount.

In stock
Simple & Secure VESA Tilt Mount

Sturdy steel construction means our tilting TV wall mount is strong and stays where it belongs. Once assembled and installed together (two pieces) and then mounted to both the wall and back of a VESA compatible case or enclosure, a simple locking screw ensures the safety and security of the product.

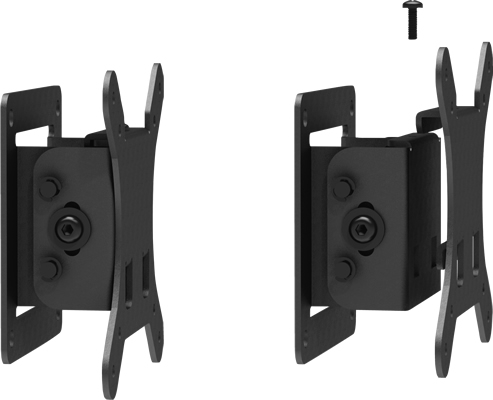

VESA Tilting Wall Mount - Easy Assembly

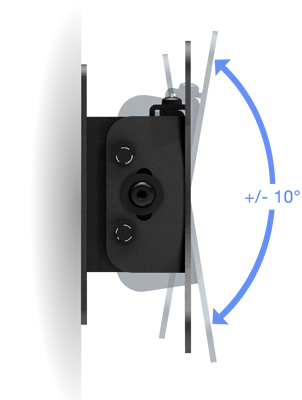

Tilting VESA Wall mount Up or Down by 10 degrees
Perfect Angle

This tilting wall mount can be adjusted for optimal viewing angles. Once the TV mount is set at your perfect angle, it can be locked in place by tightening one of the cap screws–safe and easy.

VESA Tilting Wall Mount:
Mounting Points

The VESA 75 & 100 (75mm & 100mm) tilting wall mount’s compatible mounting points allow you to install the product with a wide range of VESA-compatible tablet enclosures, including all of our VidaMount VESA Tablet Enclosures.

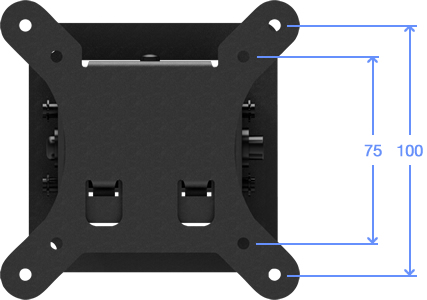

Tilting VESA Wall Mount VESA 100/75 Mounting Points
Dimensions

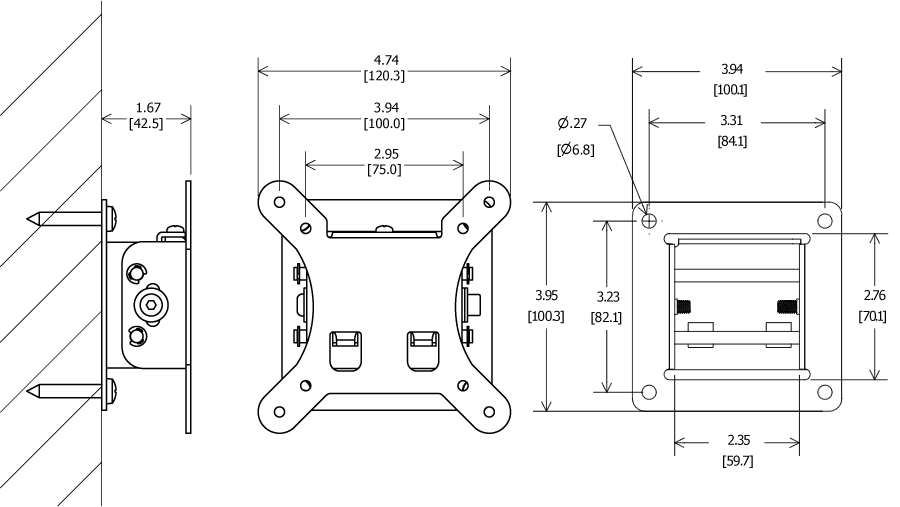

Tilting VESA 75/100 Wall Mount Dimensions
What's in the box
  • Tilting VESA Wall Mount
  • (4) Hollow/solid wall anchors
  • (4) #12 x 1.5" wall screws
  • (4) M4 x 8mm machine screws
  • Installation instructions [Download]
⚠ WARNING: California Prop 65
This product can expose you to chemicals
including lead, which is known to the State of
California to cause cancer. For more information,
go to P65Warnings.ca.gov
ADDITIONAL INFORMATION
SKU VB_VESA_MNT_TW
UPC 855706005657
HS / Harmonized Code 830249
Net Length 4.75" [120 mm]
Net Width 4.75" [120 mm]
Net Height 1.65" [41 mm]
Net Weight 0.91 lbs [0.41 kgs]
Package Length 5.30" [134 mm]
Package Width 5.20" [132 mm]
Package Height 2.20" [55 mm]
Package Weight 1.25 lbs [0.57 kgs]
Other VESA 75x75 or 100x100 Compatible
