Secure and versatile, this Fixed Tilt Mount is ideal for VESA 75/100 compatible tablets and displays in commercial, retail, or smart home environments. Its 15-degree tilt provides an optimal viewing angle, while integrating hidden cable management and internal space for power / PoE components - delivering a clean, professional installation. Made of its durable steel build, gangbox compatibility, & Kensington lock support - this mount ensures reliable, tamper-resistant performance for any wall or desk kiosk applications.
[VESA Wall Mount only. Tablet enclosure NOT included]
| SKU | VB_VESA_MNT_FTS_BLK |
|---|---|
| UPC | 815356028994 |
| HS Code | 8302494000 |
| Product | |

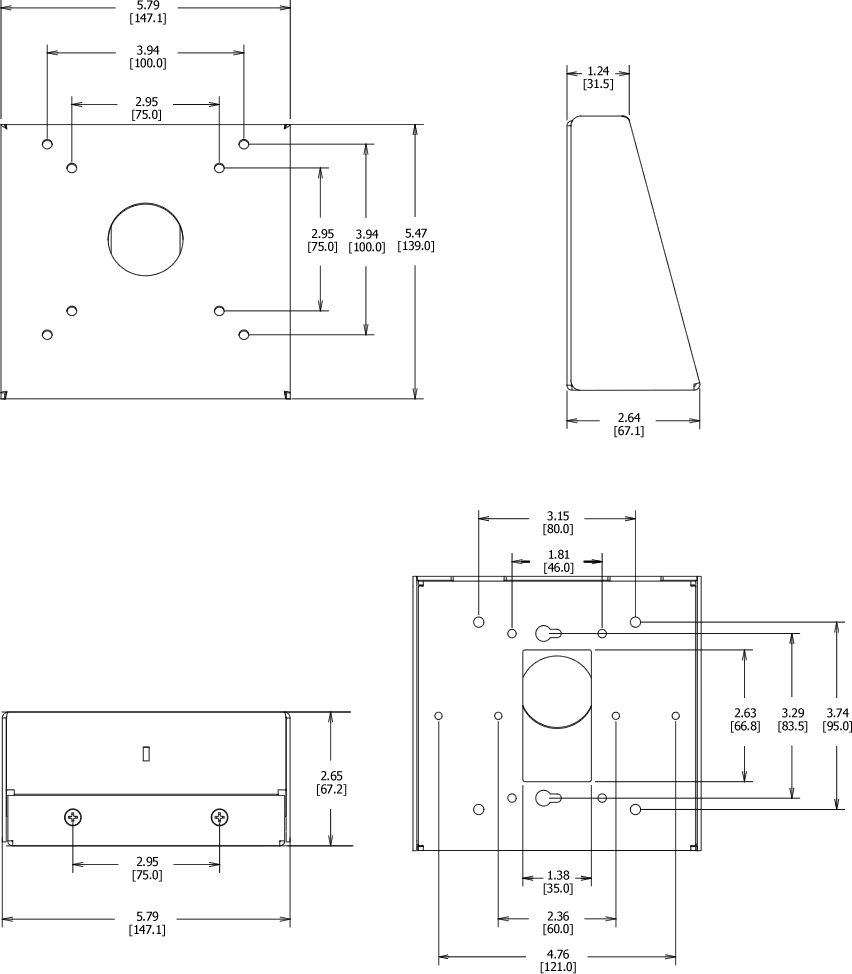

| Length | 5.79" [147.1 mm] |
| Width | 5.47" [138.9 mm] |
| Height | 2.64" [67.1 mm] |
| Weight | 2.50 lbs [1.134 kgs] |
Screw set bags, containing:
Rated 4.8/5 by 100+ our happy customers
Choose your perfect fit from our extensive
range
of enclosures and mounts.
Easy setup with our clear instructions.
Need help? Our support team's ready.
Transform your space with secure, powered,
and professionally mounted tablets.
Sturdy steel construction means our fixed tilted mount is strong and stays where it belongs. Once assembled together (two pieces) and mounted to either a wall / surface and the back of a VESA compatible case or enclosure - simple locking screws keep everything safe and secure.
US Patent No. 10,876,325

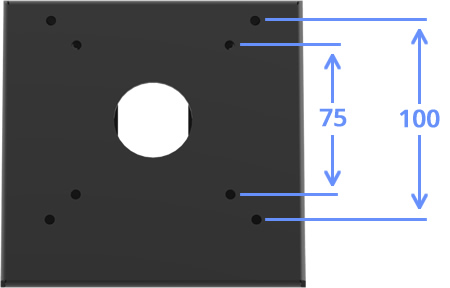

VESA 75 & 100 (75mm & 100mm) compatible mounting points means it can be used with a wide range of VESA ready displays.

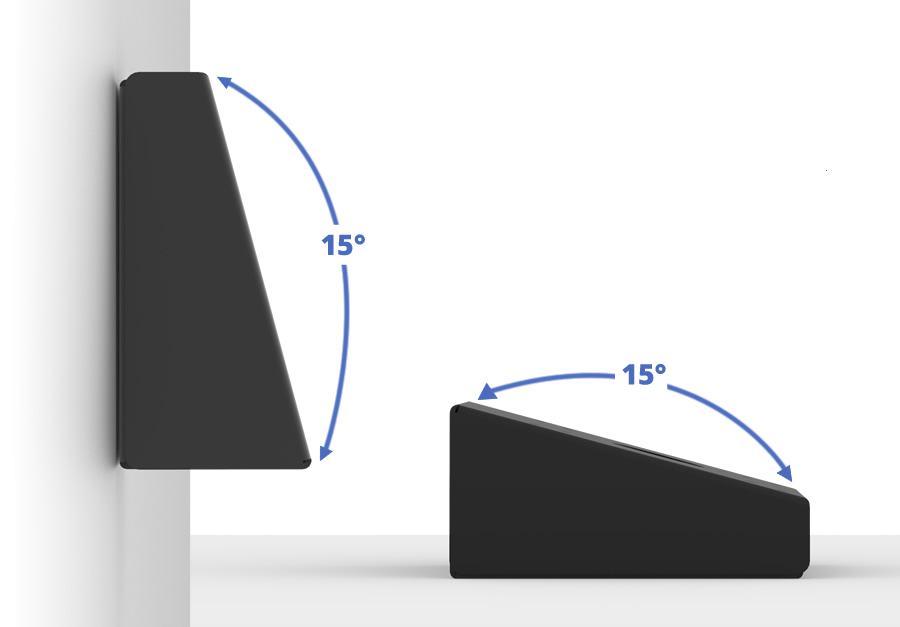

The 15° Fixed Tilted Surface Mount is at the optimal angle for kiosk engagement. If mounted to a wall, the tilt allows customers, clients and people to have a comfortable angle for ease of use. If using on a table, countertop or surface, the 15° of tilt is great for allowing a pleasant interaction.

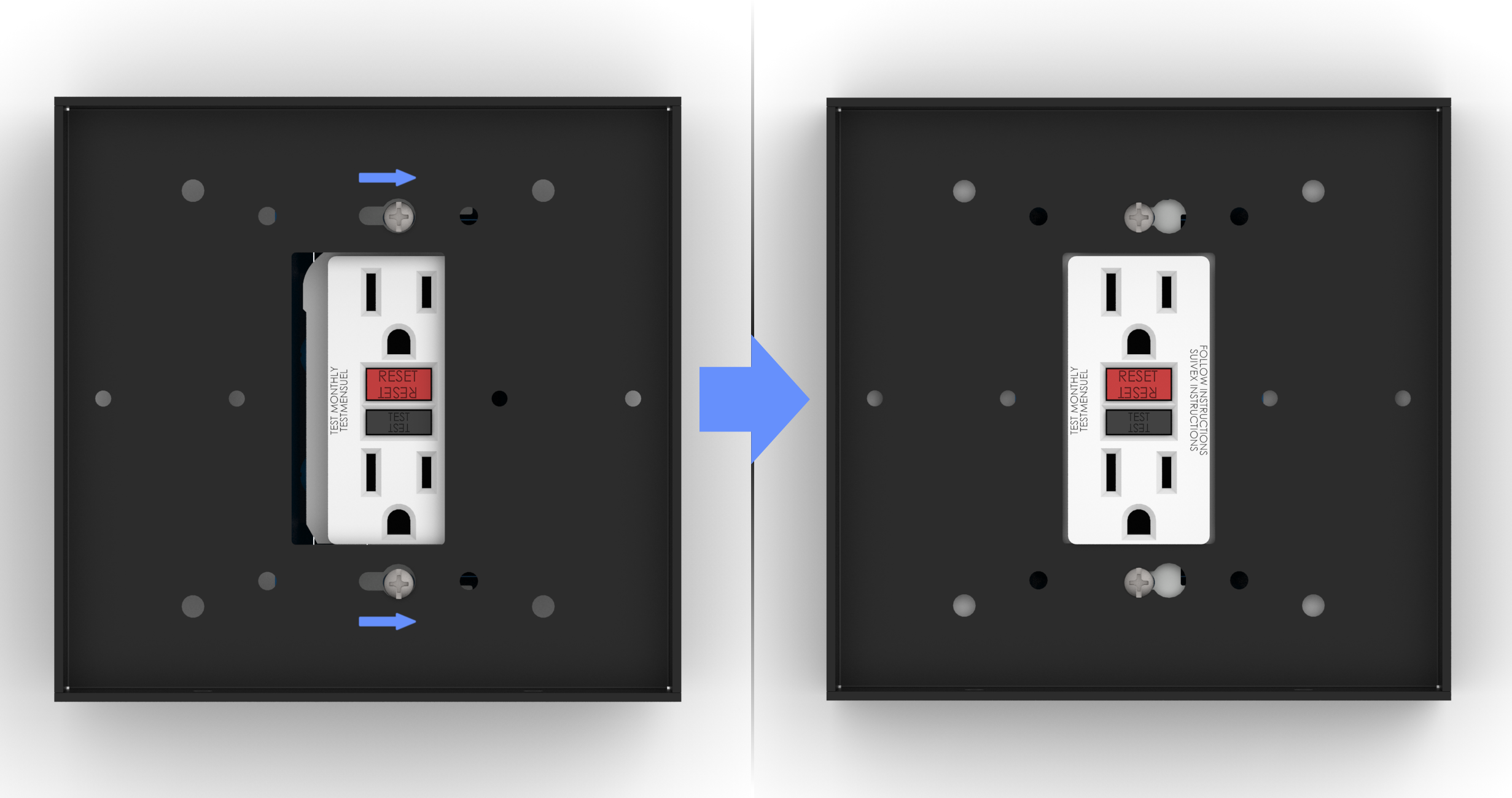

Want to use an already existing electrical outlet to power a tablet? Our 15° Fixed Tilted Surface Mount can be installed over the top of a decora style or GFCI outlet - taking the place of the faceplate. Simply remove the face plate and loosen the screws for the outlet. Then use the keyhole design pattern on the wall plate to fit over the outlet. Next tighten the screws for a finished and polished installation.
What would you rather do: Make a huge rectangular cutout? Or, mount onto an existing gangbox in your wall / drill in (4) screws? (We are guessing the latter!) Luckily, that's all we'll need to do to install the 15° Fixed Tilted Surface Mount.

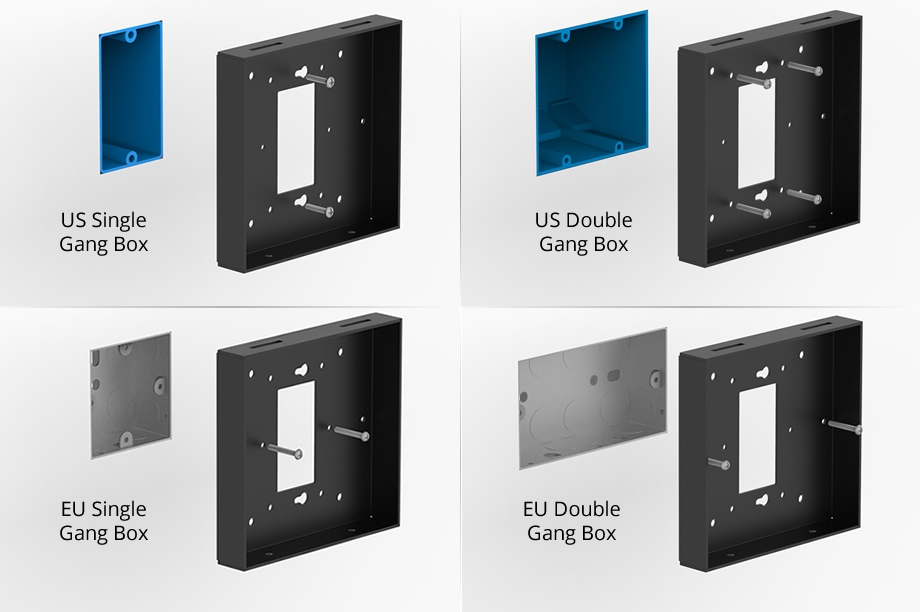

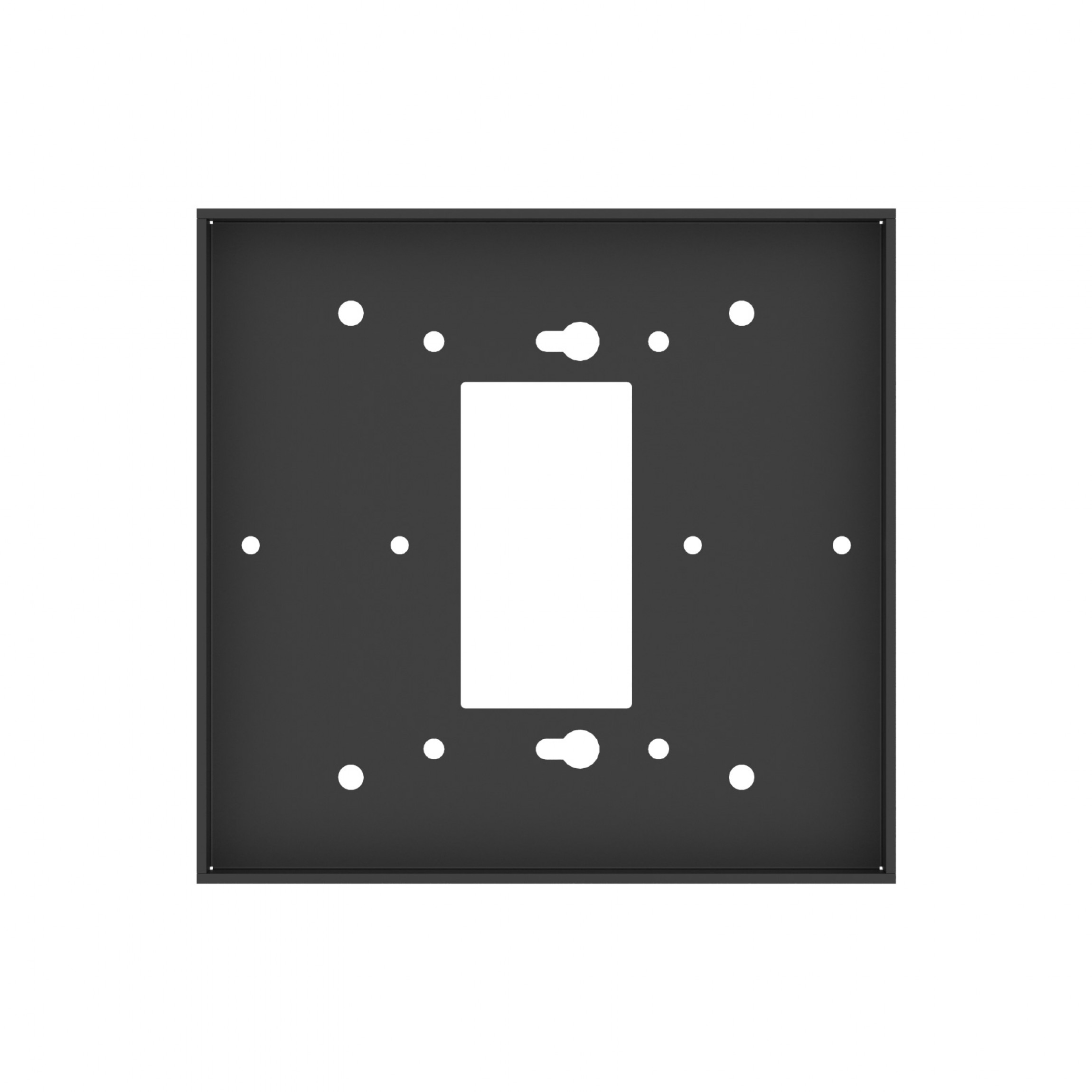

The wall plate allows for numerous mounting options. There are mounting and screw patterns for the single and double gang EU electrical / back boxes. As well as patterns for the North American equivalents - the US single and double gang boxes. This mount can easily adapt to whichever electrical box is already installed - making retrofitting easy!

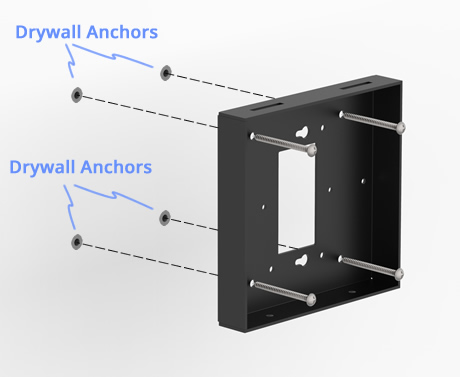

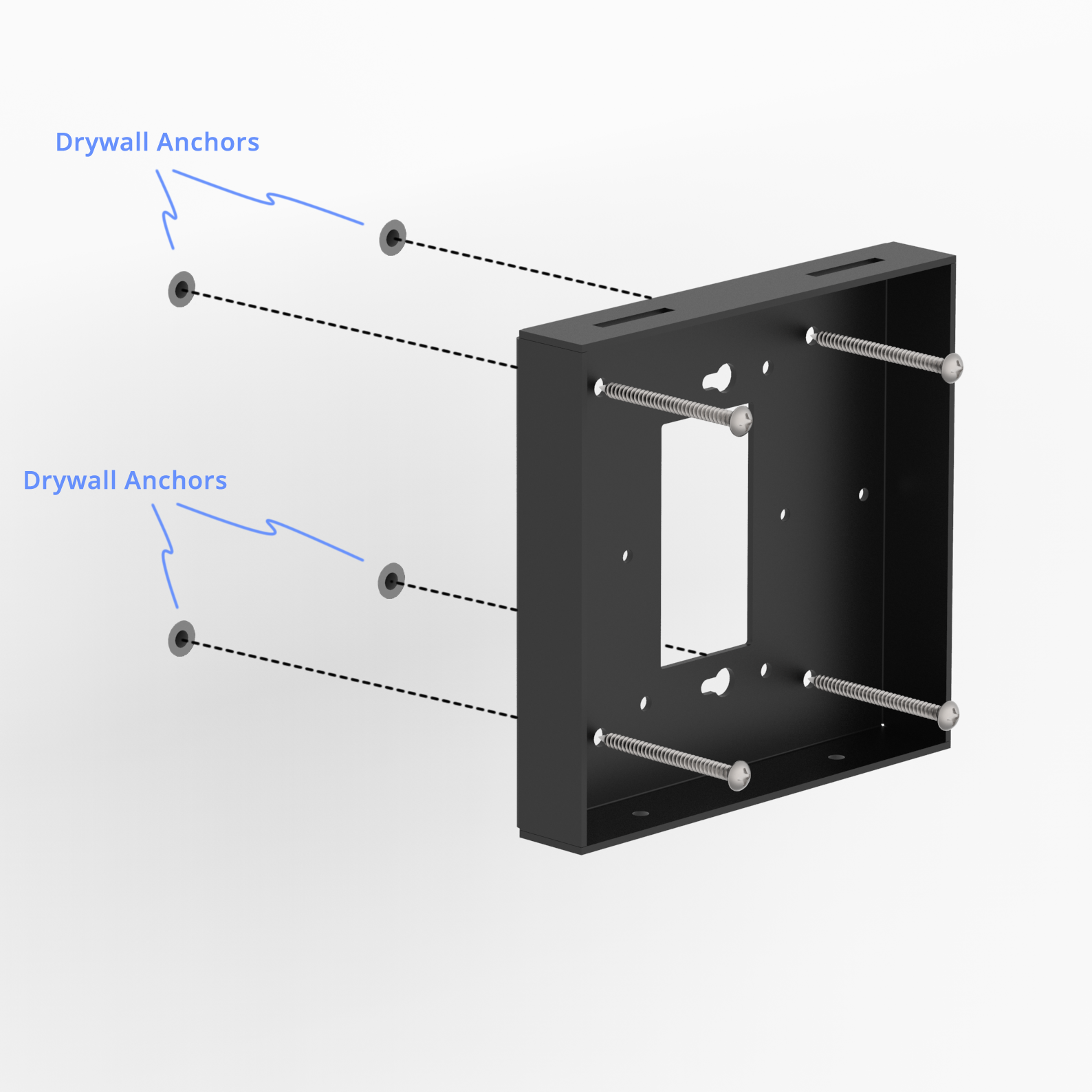

Don't have a gang box to mount to? No problem - mounting directly onto drywall is simple. The 15° Fixed Tilted Surface Mount is kitted with wood screws and drywall anchors to accomplish this task - mounting made easy!
Need to fit a plugged in tablet's AC adapter / ″power brick″ within a kiosk? Storing and hiding powering components of the tablet is easy with our 15° Fixed Tilted Surface Mount. There is more than enough to plug the tablet's powering components into an overlaid outlet - if additional room is need, use the included 1ft extension cable for a better wiring configuration. Also PoE and other adapters can be kept out of site inside this mounts roomy storage chamber.
With through holes on both the wall and VESA plates in its design, we can easily pass cables from our mounted VESA ready device. No need to make additional cut outs or punch additional holes when using our VidaMount enclosures!

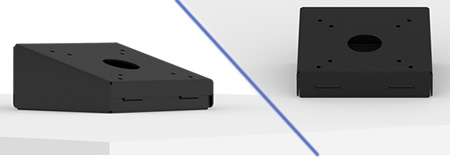

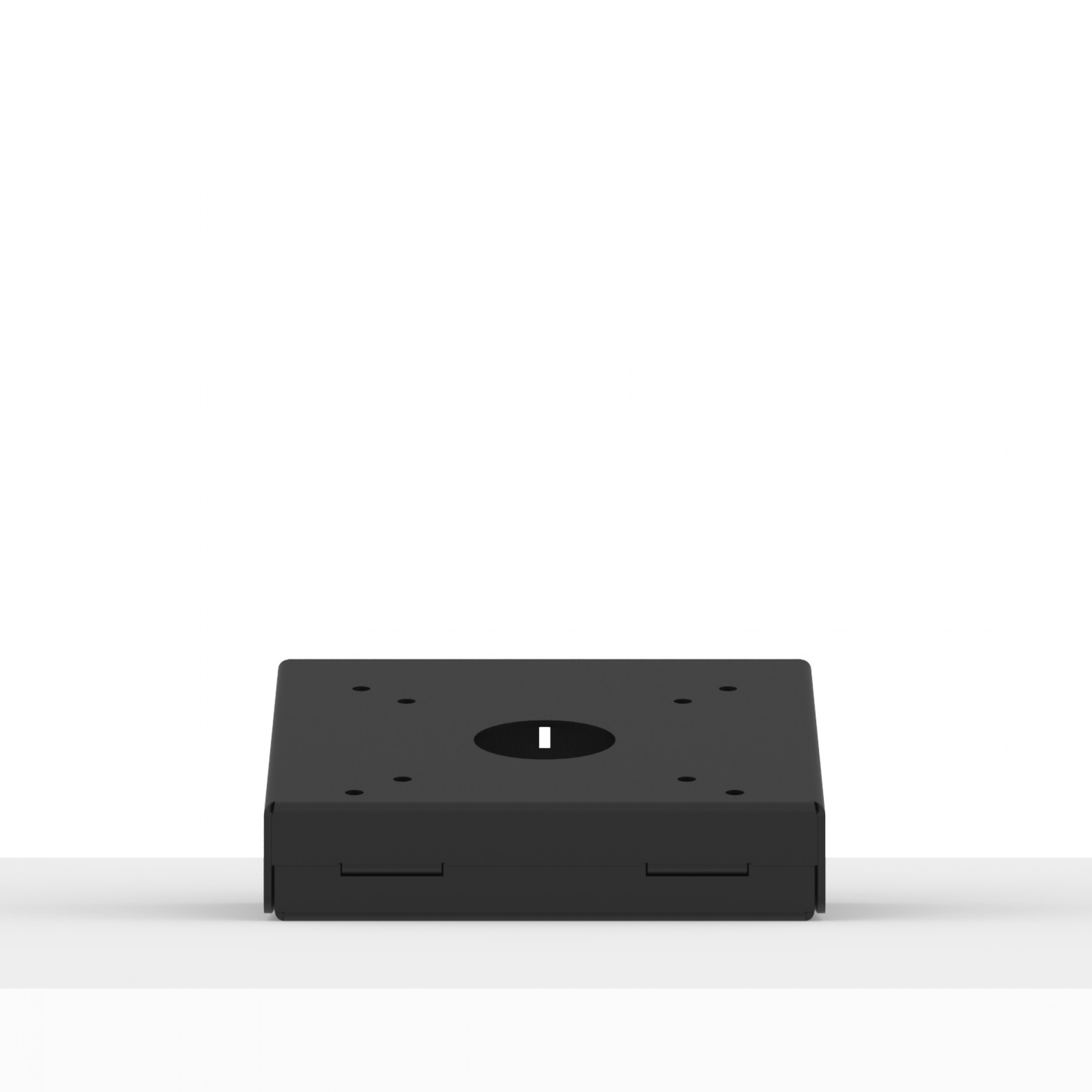

The 15° Fixed Tilted Surface Mount can also be used as a sleek looking counter, table or desk top mount. We can secure the mount to the surface using the wood screws included - or - use the mount as a portable free standing mount. Versatility at its finest!

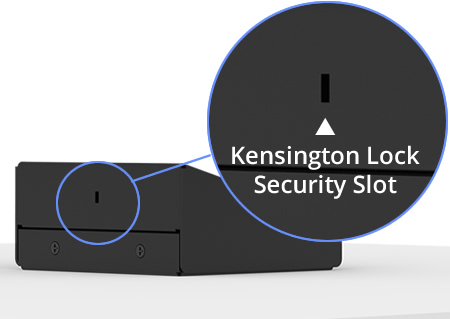

The 15° Fixed Tilted Surface Mount includes a Kensington Security Slot that is compatible with any Kensington laptop security lock and cable system. Using a kensington lock allows the mount to be secured on a table / desk top without having to screw into the surface.
