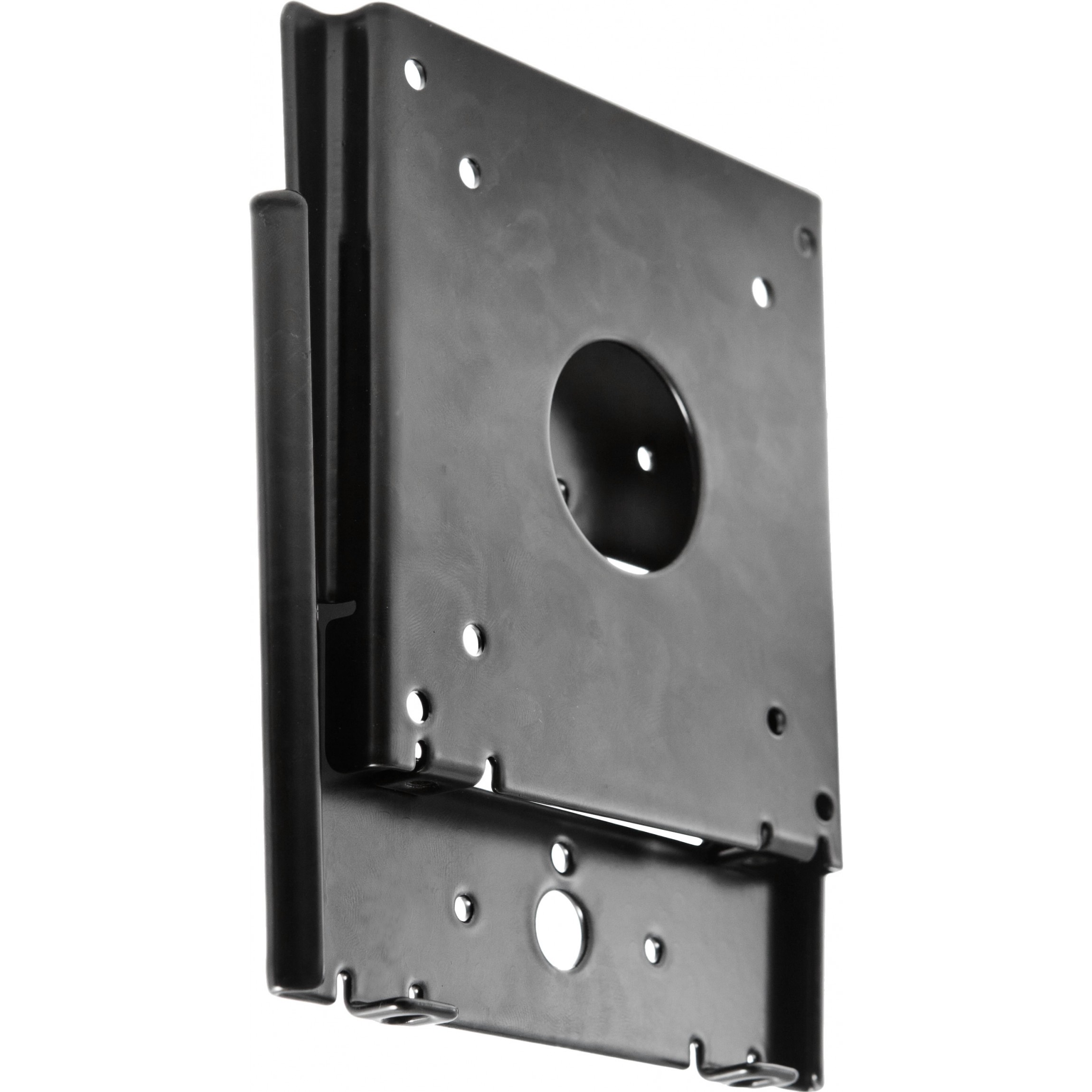

Fixed VESA Slim Wall Mount - Assembly View

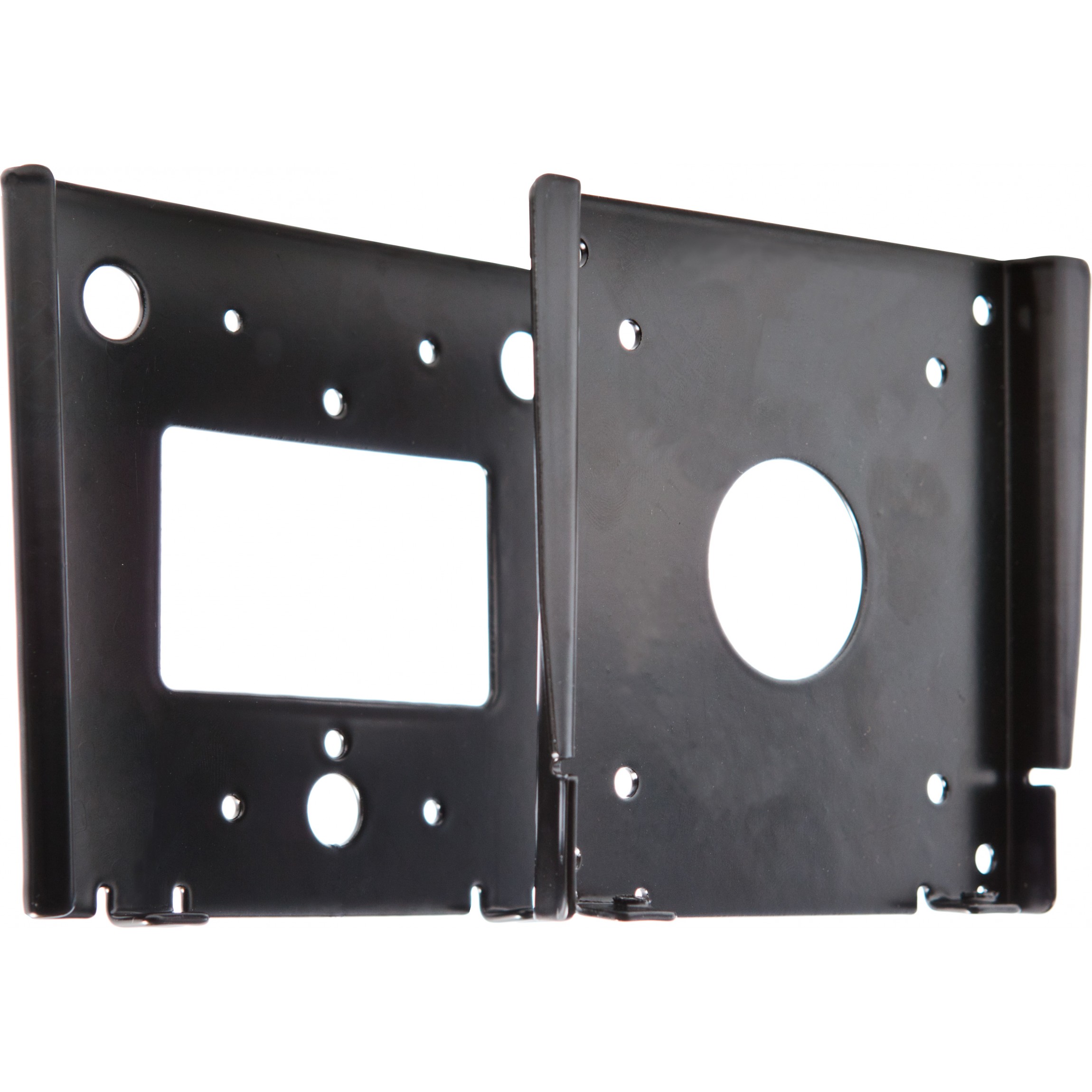

Fixed VESA Slim Wall Mount - Separate Pieces View

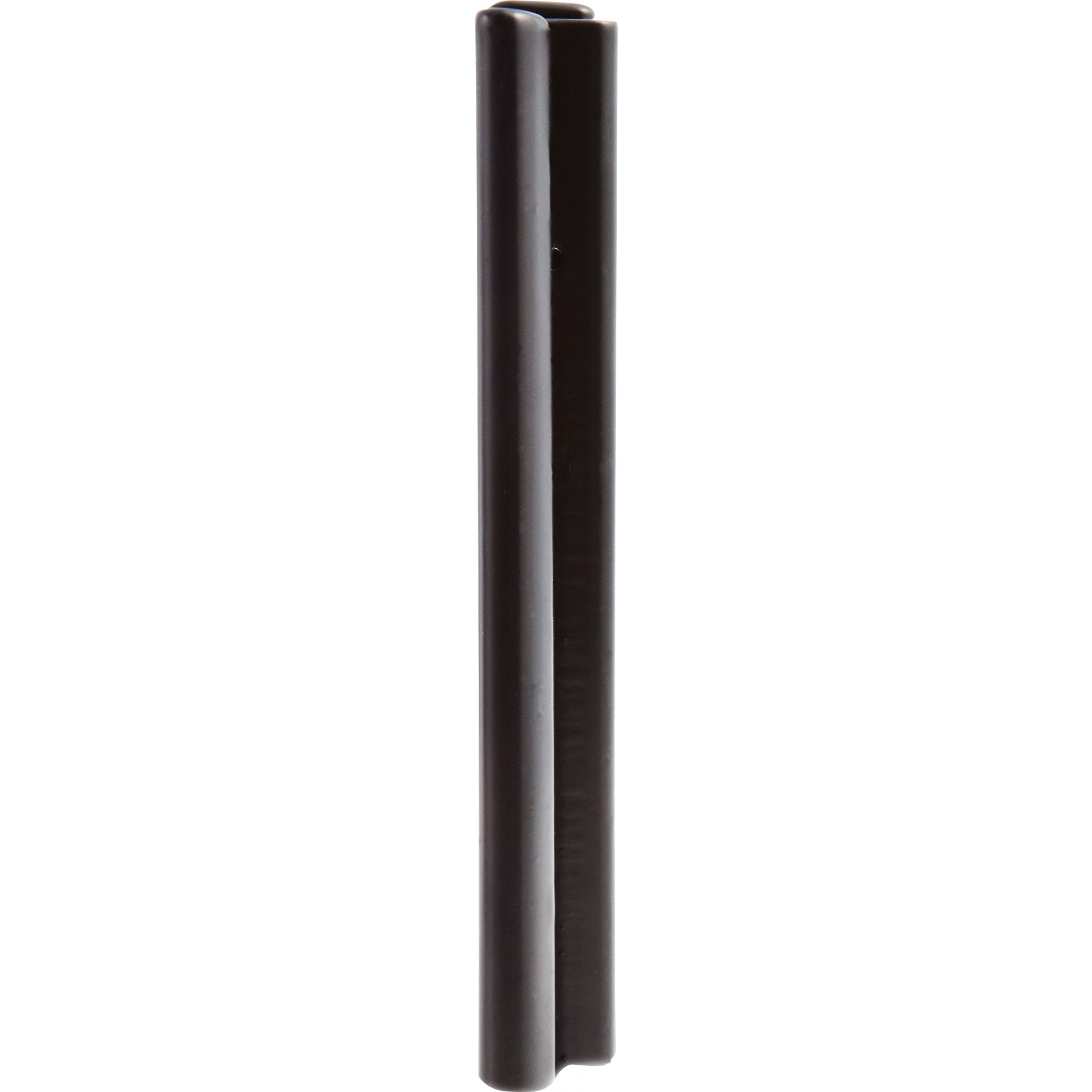

Fixed VESA Slim Wall Mount - Side View
Fixed VESA Slim Wall Mount - Rear Isometric View

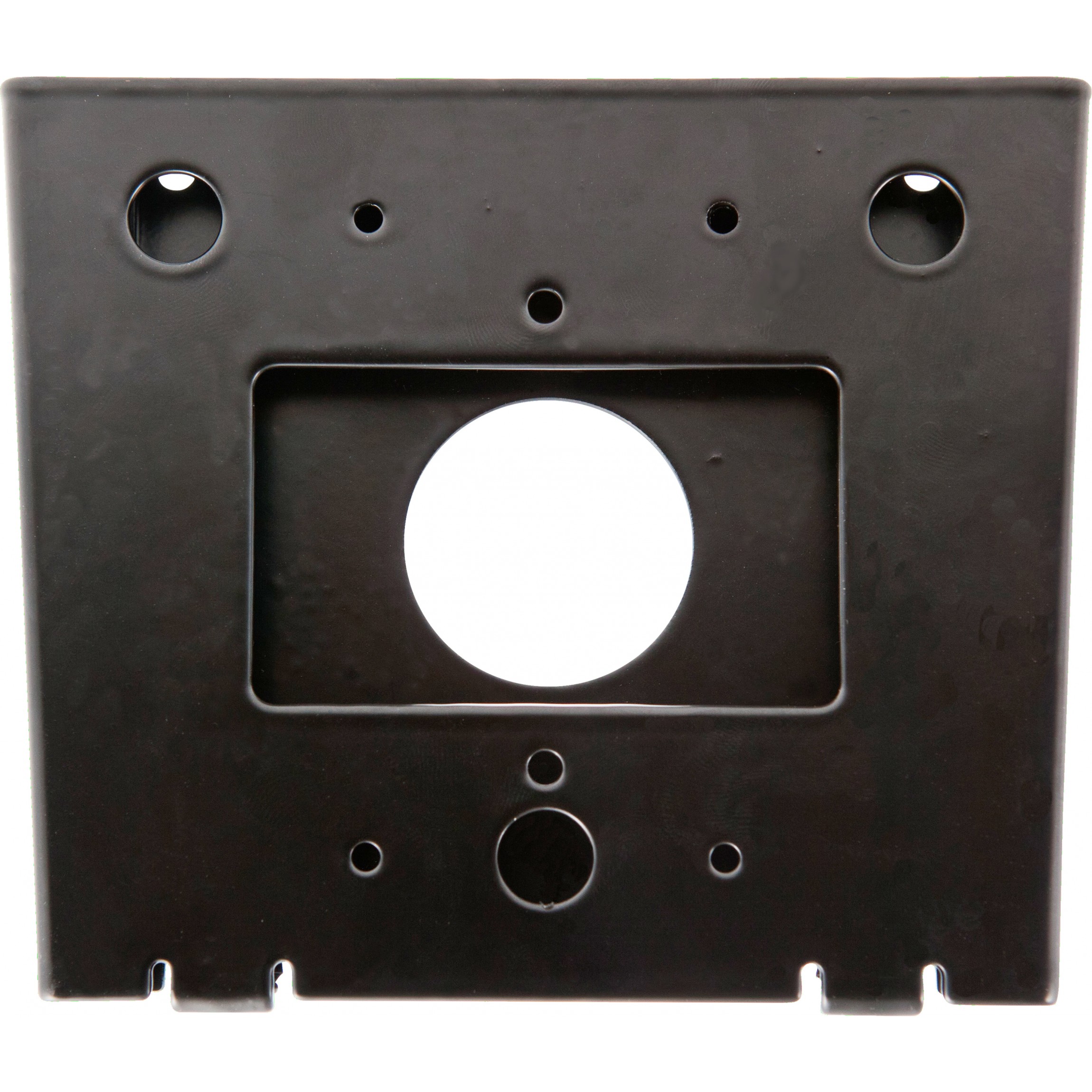

Fixed VESA Slim Wall Mount - Rear View

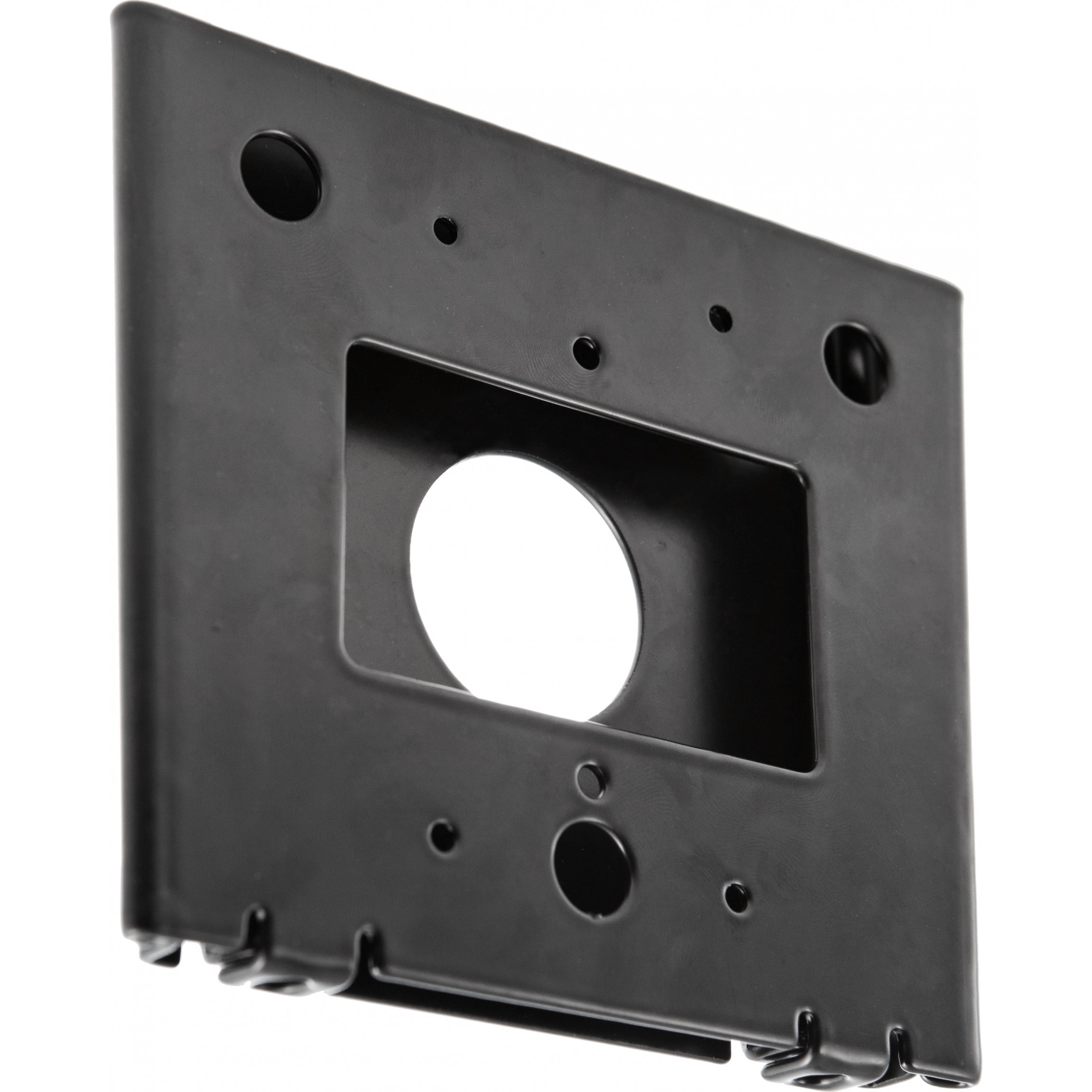

Fixed VESA Slim Wall Mount - Rear Bottom View
Hardware Kit - Fixed VESA Wall Mount

Fixed VESA Slim Wall Mount

$19.89

VESA 100/75 compatible wall mount with .60" [15mm] wall clearance.

In stock
Slim, Simple, and Secure

Super slim design means there is only 0.60″ between your device and your wall. Once assembled together (two pieces) and mounted to both the wall and back of a VESA compatible case or enclosure, (2) simple locking screws at the bottom keeps everything safe and secure.

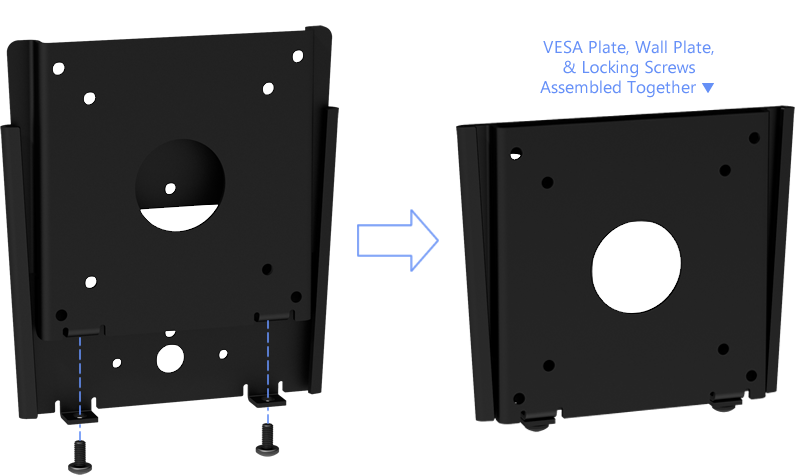

VESA Fixed Slim Wall Mount - Easy Assembly

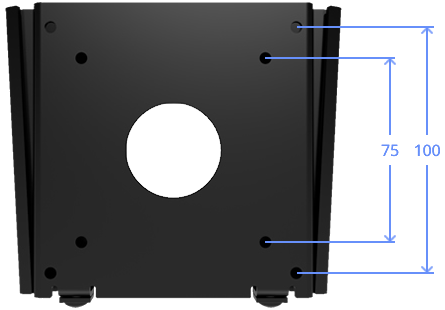

VESA Mounting Points

VESA 75 & 100 (75mm & 100mm) compatible mounting points means it can be used with a wide range of VESA ready displays.

VESA 100-75 Compatible Wall Mount
Mounts onto Any Standard Gang Box

This VESA mount can be directly attached to any standard US single gang box (3.225″x 1.880″), or any European or international gang box (60mm inline). It's the perfect choice when used in conjunction with our VidaPower adapters - simply run a CAT5 cable into the gang box, then place the VidaPower adapter inside. There's plenty of clearance for connecting the required USB cable - installation doesn't get any simpler!

Compatible with any US, European, or International Gang Box

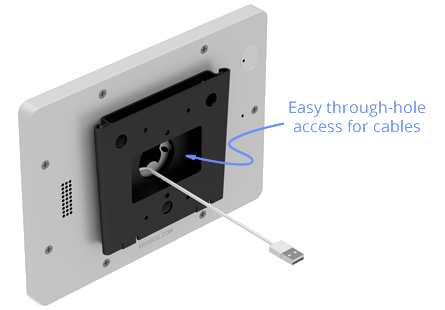

Easy Cable Management

With through holes on both wall and VESA plates in its design, we can easily pass cables from our mounted VESA ready device. No need to make additional cut outs or punch additional holes when using our VidaMount enclosures!

VESA 100-75 Compatible Wall Mount
Glass Mount Ready
Glass Mount Ready

Easily mount your VESA ready display onto any glass surface with our suction cup kits for easy removal, or choose our permanent adhesive kits for a secure, non-removable installation!

Removable or Secure Mounting

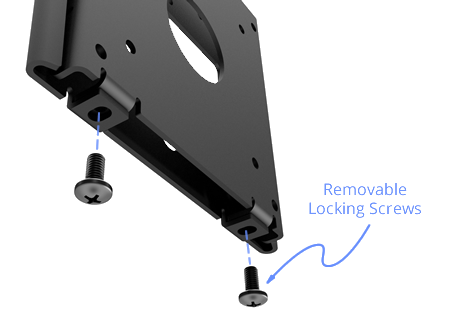

Need to allow quick access and tablet removal one day - but need it to be fixed and secured (non-removable) the day after? Not a problem! The dual locking screws at the bottom of the mount allows flexible security that can be changed anytime!

VESA 100-75 Removable or Secure Wall Mount
Dimensions
Fixed VESA Slim Wall Mount Dimensions
What's in the box
  • Fixed VESA Slim Wall Mount
  • (4) M4 x 8mm Phillips button head mach. screw
  • (4) #6-32 x 1″ Phillips button head mach. screw
  • (2) #8 x 1.75 in Phillips button head wood screw
  • (2) Wall anchors
  • (2) M3.5 x 25mm machine screws & washer set
  • Installation instructions [Download]
⚠ WARNING: California Prop 65
This product can expose you to chemicals
including lead, which is known to the State of
California to cause cancer. For more information,
go to P65Warnings.ca.gov
ADDITIONAL INFORMATION
SKU VB_VESA_MNT_FSW
UPC 852220006511
HS / Harmonized Code 830249
Net Length 5.55" [140 mm]
Net Width 0.60" [15 mm]
Net Height 4.80" [121 mm]
Net Weight 1.04 lbs [0.47 kgs]
Package Length 5.80" [147 mm]
Package Width 5.30" [134 mm]
Package Height 0.80" [20 mm]
Package Weight 1.00 lbs [0.45 kgs]
Other VESA 75x75 and 100x100 Compatible
Supports up to:
- 50lbs (22.6kg) when directly wall mounted
- 4 lbs (1.8 kg) when mounted onto electrical gang boxes
